GK200M

SPECIFICATIONS

ENGINE

Engine Type

Four-Stroke, Single Cylinder

Displacement

200 cc

Bore & Stroke

67.5 x 64 mm

Compression Ratio

9.5 : 1

Fuel System

Carbureted

Ignition

CDI

Transmission

Automatic with Reverse

Drive Train

Chain Drive

Cooling

Air

Horse Power

9.5 HP

Fuel Tank Capacity

1.5 gallons

Battery

12 volts 9 ah

DIMENSION

Overall Length

90 in.

Overall Width

60 in.

Overall Height

54 in.

Seat Height

14 in.

Ground Clearance

9 in.

Front Tire

AT 19 x 7-8

Rear Tire

AT 19 x 9.5-8

Wheelbase

75.5 in.

Dry Weight

499 lbs

Towing Capacity

NA

SUSPENSION

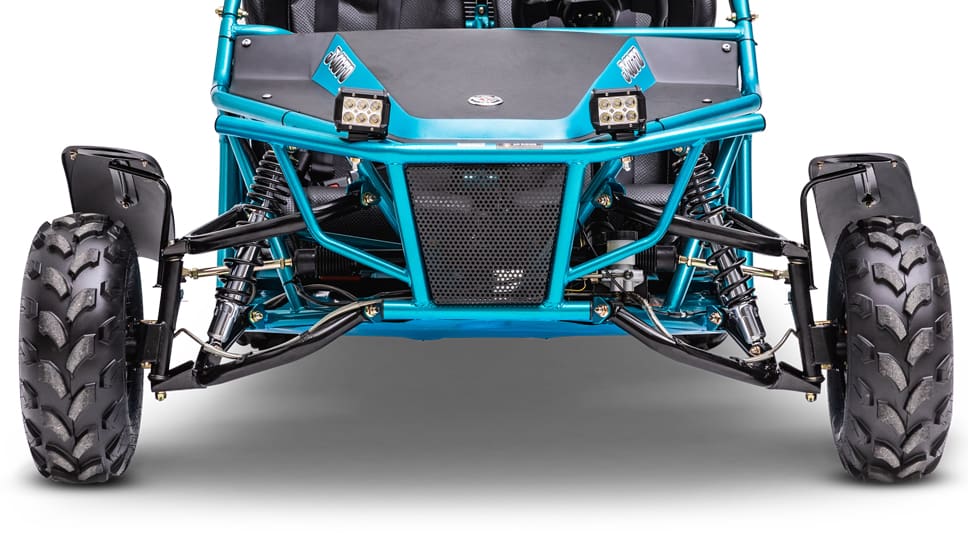

Front Suspension

Independent Dual A-Arm

Rear Suspension

Swing Arm

BRAKE

Front Brake

Disc

Rear Brake

Disc

OTHER

Colors

Black, Blue, Red, White, Yellow

Aluminum Wheels

Included

Warranty

6-Month Limited Warranty

Age Limit

16 Years and Older
